Description

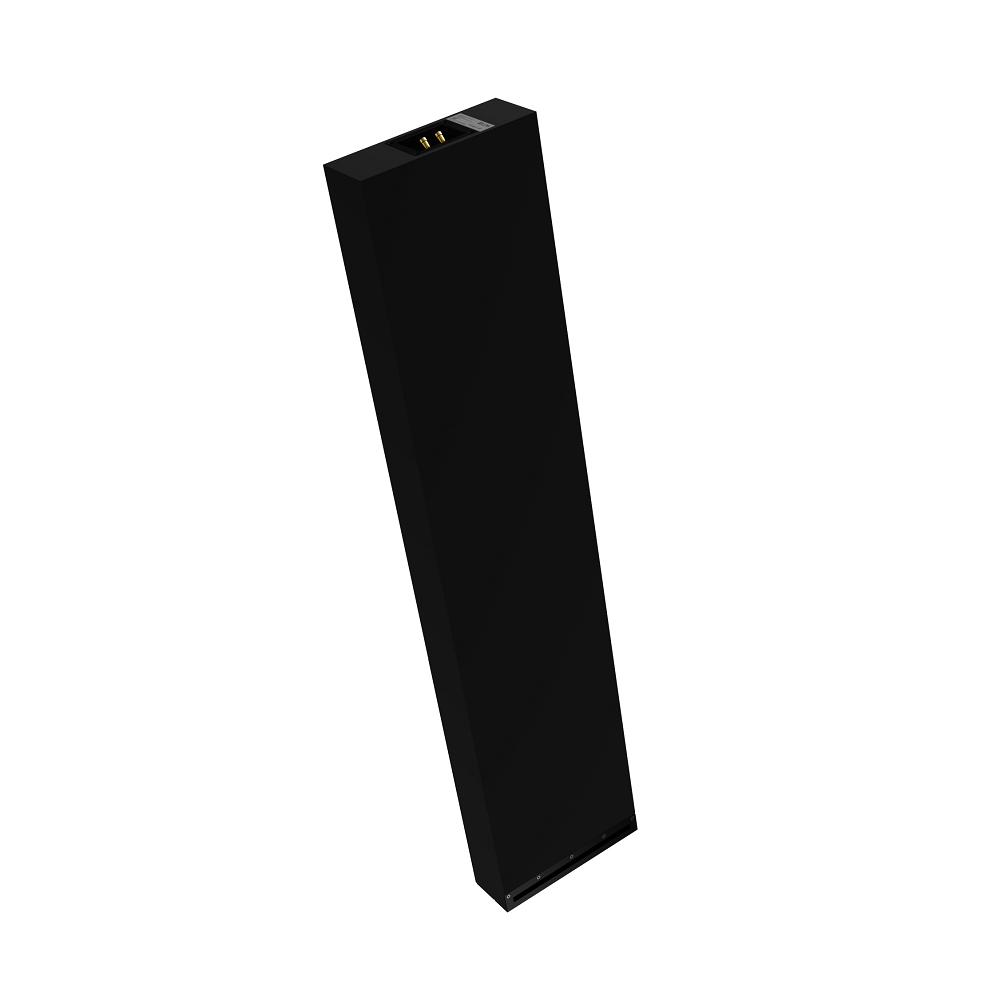

Using a Distributed Transmission Line design using an array of 4″ drivers, the ALF120 packs a punch whilst staying incredibly slim. At only 118mm thin and 345mm wide, it is designed to fit into a cavity wall or ceiling.

Requiring a DSP amplifier (or suitable system processor), the ALF120 can play down to 27Hz at 111dB at 1m from just 50W. This makes the subwoofer perfect for great music systems but also media rooms and home theatres.

Amina Tip:
Whilst subwoofers and bass enhancers have been designed to fit into a wall or ceiling, another great installation option is to build them into cabinetry or even have them sat in-room. A subwoofer could port through kick-boards in a kitchen, or from under a sofa or bed. As long as airflow is not impeded, the subwoofer vent can be easily disguised.

• Nominal Impedance 6 Ohms
• Power Handling 50W
• Sensitivity 96dB 1m/2.83Vrms (quarter space)
• Frequency Response 27Hz – 120Hz (±6db) 48dB/Octave bandpass
• Electrical Connection Push Terminal
• Fixing Requirements Felt isolation-pads (included)
• Protection External DSP protection (voltage limiting) – Not included
• Port Location Front or end-fire location options
• Port Dimensions 308mm x 14mm (12” x 9/16”)
